Product Description

Flat Ribbon Cable Cutter, PanaPress IDC Kit, Aluminum Material, For Use With 68-Pin Conductor Cable, Ribbon Cable Up to 3-7/32 in. W, Up to 14 ga. Thick, Mfg. No. 502, 506 Combo

From the Manufacturer

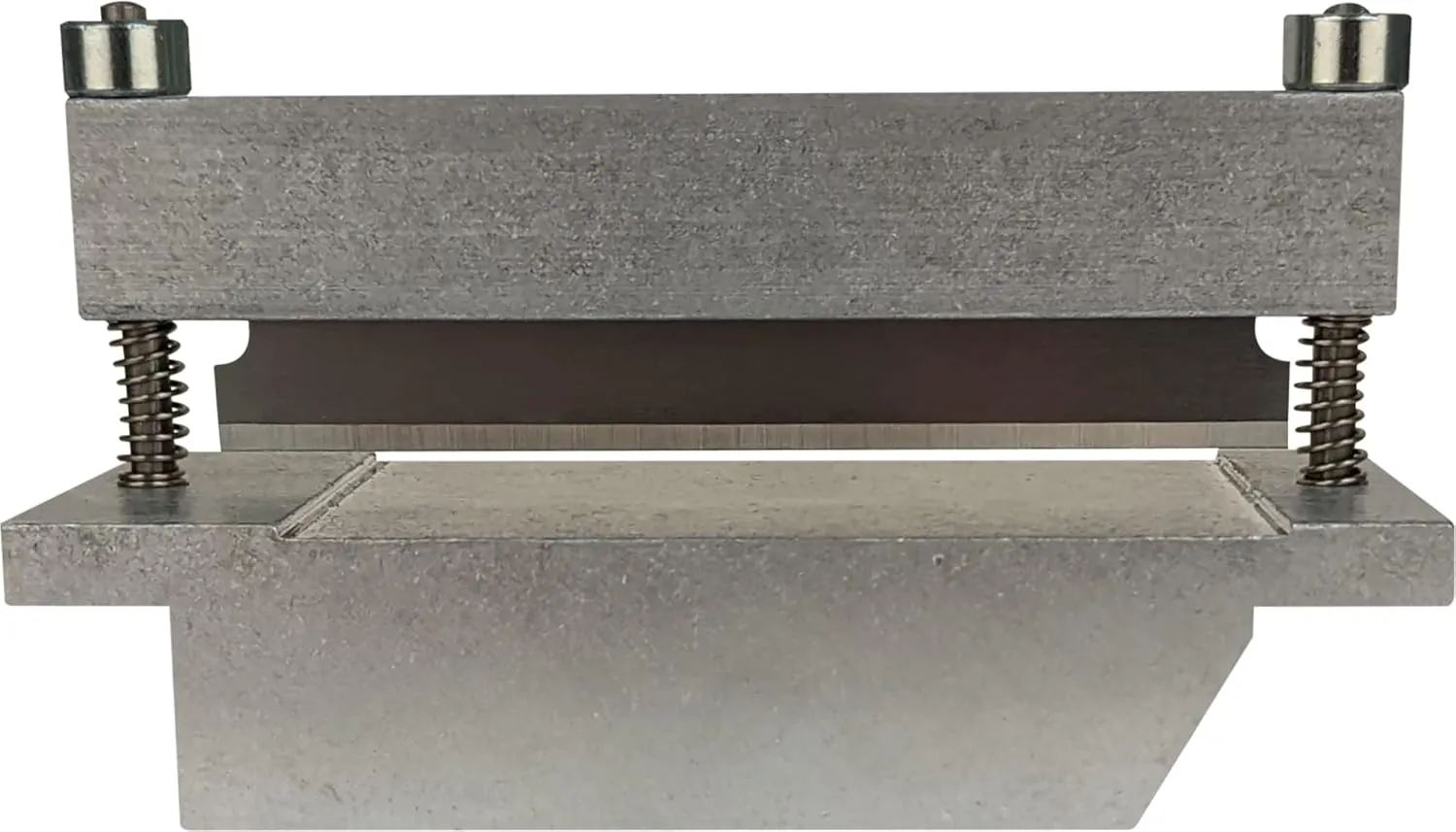

The PanaVise 507 flat ribbon cable cutter is an accessory that is designed to cleanly and accurately cut flat ribbon cable when used with the PanaVise 502 PanaPress and the PanaVise 506 IDC retrofit kit (both required for use and sold separately), saving time and resources important in industry sectors, including computer networking, telephony,and electronics. To make cable cuts, the 506 IDC retrofit kit is mounted to the PanaVise 502 PanaPress, and the 507 flat ribbon cable cutter is placed in the central opening. The cable is aligned directly under the ram adapter of the 506 IDC retrofit kit, which evenly distributes the downward pressure of the PanaPress ram element onto the spring-loaded blade arm of the cable cutter, resulting in perfect right angle cuts every time. The PanaVise 507 accommodates up to 68-pin conductor cable, and ribbon cable up to 3.21875" (81.8 mm) wide and up to 14-gauge thick, is more efficient than hand tools, and will not pull inner wires. Replacements blades for the unit are available for additional purchase.

Limited Lifetime Warranty

All PanaVise products are warranted against defective materials and/or workmanship to all original consumer owners from the date of original consumer purchase for the lifetime of ownership by the original consumer owner. In the event of defective materials and/or workmanship, PanaVise Products, Inc. will, without charge, repair or replace, at its option, the defective product within 60-days from the receipt of the defective product. The Warranty does not apply to damage not resulting from defective materials and/or workmanship while in the possession of the original consumer or to unreasonable use by the original consumer, which includes but is not limited to improper installation, or failure to provide reasonable and necessary maintenance.

About PanaVise

Founded in 1957 by tool and die maker Otto Colbert and currently headquartered in Reno, Nevada, PanaVise is a leader in work-holding products. Over the years, a natural outgrowth of this expertise has been continued development of other items which hold things securely and offer a wide range of motion. Important areas in which this has been applied include, electronics, CCTV camera mounts, and audio/video mounts, earning PanaVise the nickname the "the hold it anywhere you want it company."

• Product Dimensions ‏ : ‎ 3.1 x 2.3 x 5.2 inches; 8 ounces
• Date First Available ‏ : ‎ December 1, 2006
• Manufacturer ‏ : ‎ Panavise
